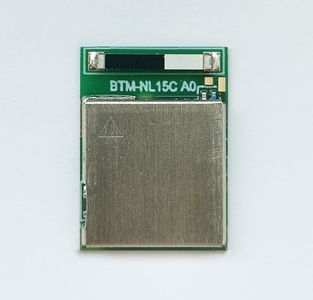

BTM-NL15C
The nRF54L15 is a high-performance wireless SoC from Nordic Semiconductor, designed specifically for Bluetooth Low Energy (BLE) and other wireless communication applications. It features powerful processing capabilities, low-power design, and various RF functionalities, enabling efficient wireless connectivity.
Additionally, the nRF54L15 supports the important feature of Channel Sounding. By combining Phase-Based Ranging (PBR) and Round-Trip Time (RTT) technologies, it enables high-precision bidirectional ranging between two BLE devices. Under ideal conditions, the positioning accuracy can reach 20-30 cm. Channel Sounding also introduces timestamped packets, which help prevent relay attacks, further enhancing the system's security and reliability.
Specification
- Processor:ARM Cortex M33, 128MHz
- 1.5MB Flash Memory / 256KB RAM
- On board Antenna:Chip Antanna
- Form Factor:14.5 x 10.5 x 2.15 mm
- Supply voltage range:1.7V to 3.6V
- General Purpose I/O Ports:31
- +8dBm TX power
- Interfaces: QSPI, SPI, UART, I2C, I2S,PDM, PWM, ADC, and NFC
- Operating temperature: -40 to +85°C
Application
- Health / fitness sensor and monitor devices
- Wireless payment enabled devices
- Personal area networks
- Smart home sensors and controllers
- Industrial IoT sensors and controllers
- Remote controls
- Gaming controllers
- Access Control
- Home Appliances
- Mesh Network
- Asset tracking
- Gateways and hubs
- Digital Key
