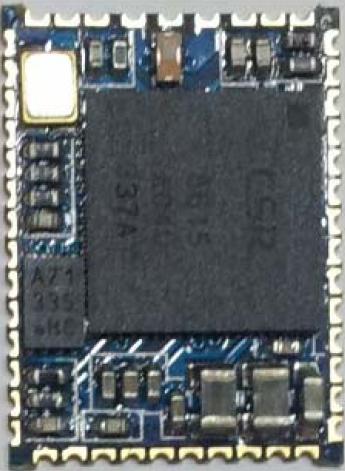

Mono ROM module (CSR 8615)


  • Fully Qualified Bluetooth v4.0.
  • Integrated Switched-Mode Regulator.
  • Integrated Battery Charger.
  • Embedded Kalimba DSP Co-Processor.
  • Stereo line input audio ADC and Mono DAC.
  • CSR’s latest CVC technology for narrowband and wideband voice connections including wind noise reduction.
  • Widebank speech supported by HFP v1.6 Profile and mSBC codec.
  • Multipoint A2DP connection enables a headset(A2DP) connection to 2 A2DP source device for music playback.
  • Audio interfaces: Line-in and microphone input.
  • Serial interfaces: USB 2.0 and SPI
  • SBC, MP3, AAC, Faststream decoder support(option).
  • Wired audio support.
  • RoHS compliant.
  • Small outline. 15 x11.5 x1.8mm
