BC04 Programmable Module

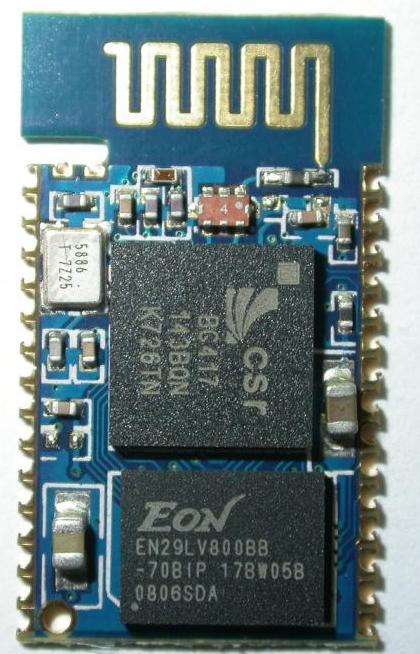

BTM-192

  • Class2 module with printed PCB antenna
  • Bluetooth standard Ver. 2.1 + EDR compliant.
  • Low current consumption : Hold, Sniff, Park, Deep sleep Mode
  • 1.8V operation
  • Support for up to seven slaves: SCO links<3>, ACL links, Piconet<7>
  • Interface: USB,UART&PCM(for voice CODEC)
  • SPP firmware is available
  • Support for 802.11 Co-Existence
  • RoHS compliant
  • Small outline: 25.0 x 14.5 x 2.2 mm

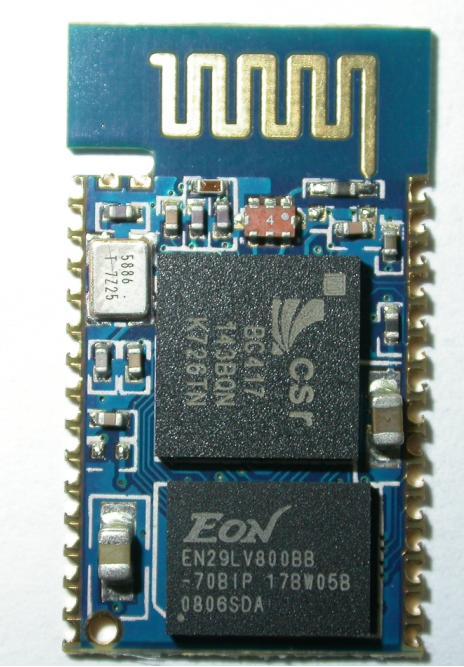

BTM-180

  • Class2 module with printed PCB antenna
  • Bluetooth standard Ver. 2.1 + EDR compliant.
  • Low current consumption : Hold, Sniff, Park, Deep sleep Mode
  • Supply Voltage: 3.0V ~ 3.6V
  • Support for up to seven slaves: SCO links<3>,ACL links,Piconet<7>
  • Interface: USB,UART&PCM(for voice CODEC)
  • SPP/DUN/HID firmware is available
  • Support for 802.11 Co-Existence
  • RoHS compliant
  • Small outline: 25.0 x 14.5 x 2.2 mm

BTM-170

  • The module is a Max.4dBm( Class2 ) module.
  • Bluetooth standard Ver. 2.1 + EDR compliant.
  • Low current consumption : Hold, Sniff, Park, Deep sleep Mode
  • 1.8V low voltage operation
  • Support for up to seven slaves: SCO links<3>,ACL links, Piconet<7>
  • Interface: USB,UART&PCM(for voice CODEC)
  • HCI or SPP,HSP/HFP,HID,DUN firmware is available
  • Support for 802.11 Co-Existence
  • RoHS compliant
  • Small outline: 14 x 12 x 2.2 mm

BTM-160

  • The module is a Max.4dBm( Class2 ) module.
  • Bluetooth standard Ver. 2.1 + EDR compliant.
  • Low current consumption : Hold, Sniff, Park, Deep sleep Mode
  • Supply voltage: 3.0V ~ 3.6V
  • Support for up to seven slaves: SCO links<3>, ACL links, Piconet<7>
  • Interface: USB,UART&PCM(for voice CODEC)
  • HCI or SPP,HSP/HFP,HID,DUN firmware is available
  • Support for 802.11 Co-Existence
  • RoHS compliant
  • Small outline: 14 x 12 x 2.2 mm

BTM-110

  • The module is a Max.4dBm( Class2 ) module.
  • Bluetooth standard Ver. 2.1 + EDR certification.
  • Low current consumption : Hold, Sniff, Park, Deep sleep Mode
  • 3.0v to 3.6v operation
  • Support for up to 7 ACL links and 3 SCO links
  • Interface: USB,UART&PCM(for voice CODEC)
  • SPP,HSP/HFP,HID,DUN firmware are available
  • Support for 802.11 Co-Existence
  • RoHS compliant
  • Small outline: 25 x 14.5 x 2.2 mm
