BC05-MM Programmable Multi-Media module

BTM-720

  • The module is a Max.4dBm( Class2 ) module.
  • Fully Qualified Bluetooth v3.0 system.
  • Integrated Switched-Mode Regulator.
  • Integrated Battery Charger.
  • Embedded Kalimba DSP Co-Processor.
  • Integrated 16-bit Stereo Audio CODEC 95dB SNR for DAC.
  • Enhanced Audibility and Noise Cancellation.
  • Integrated with 16M bits flash memory.
  • Support Host Interface: USB or UART.
  • Support Digital Audio Bus : PCM, I2S or SPDIF.
  • HSP/HFP/A2DP/AVRCP/SPP profiles support.
  • RoHS compliant.
  • Small outline. 16 x 15 x 2.2 mm.

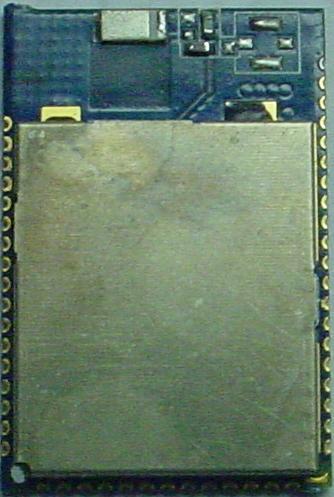

BTM-760

  • The module is a Max.4dBm( Class2 ) module.
  • Fully Qualified Bluetooth v3.0 system.
  • Integrated Switched-Mode Regulator.
  • Integrated Battery Charger.
  • Embedded Kalimba DSP Co-Processor.
  • Integrated 16-bit Stereo Audio CODEC 95dB SNR for DAC.
  • Enhanced Audibility and Noise Cancellation.
  • Integrated with 16M bits flash memory.
  • Support Host Interface: USB or UART.
  • Support Digital Audio Bus : PCM, I2S or SPDIF.
  • HSP/HFP/A2DP/AVRCP profiles support.
  • Integrated chip antenna ( or W.FL connector)
  • RoHS compliant.
  • Small outline. 16.0 x 23.9 x 2.6 mm.
